Bridge Cam Gage Test Ulnar Welding Inspection Gauges Metric and Inch

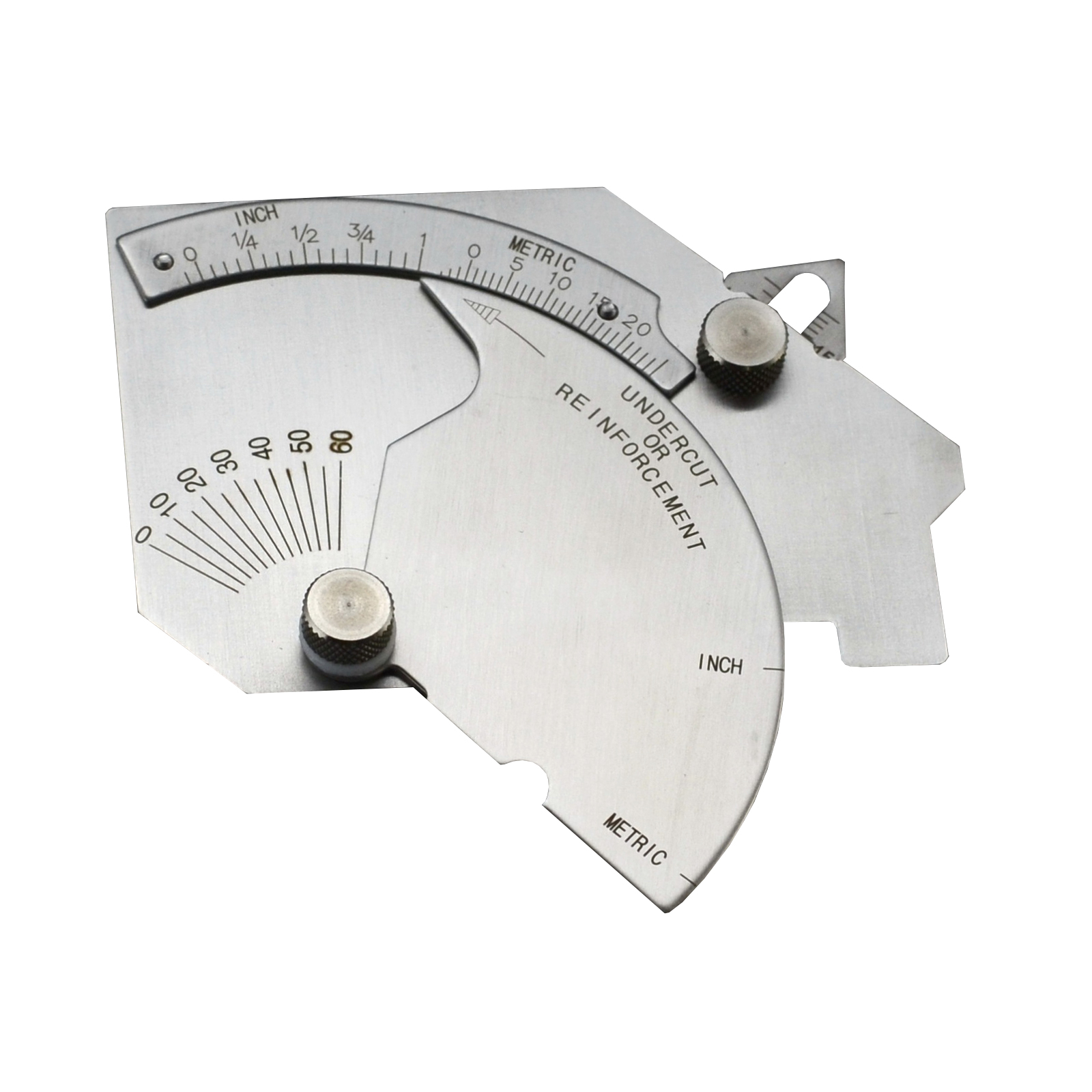

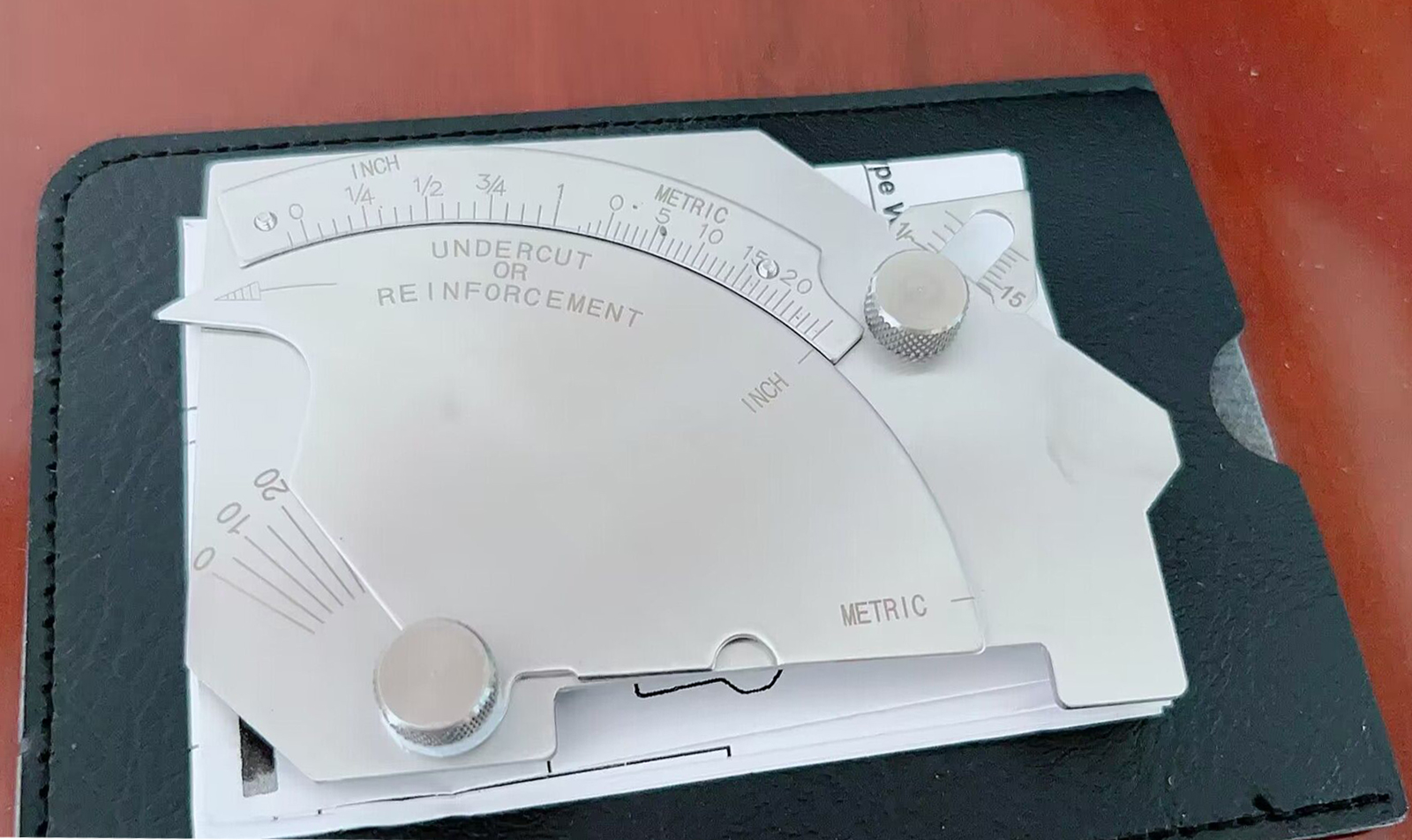

Bridge Cam Gauge

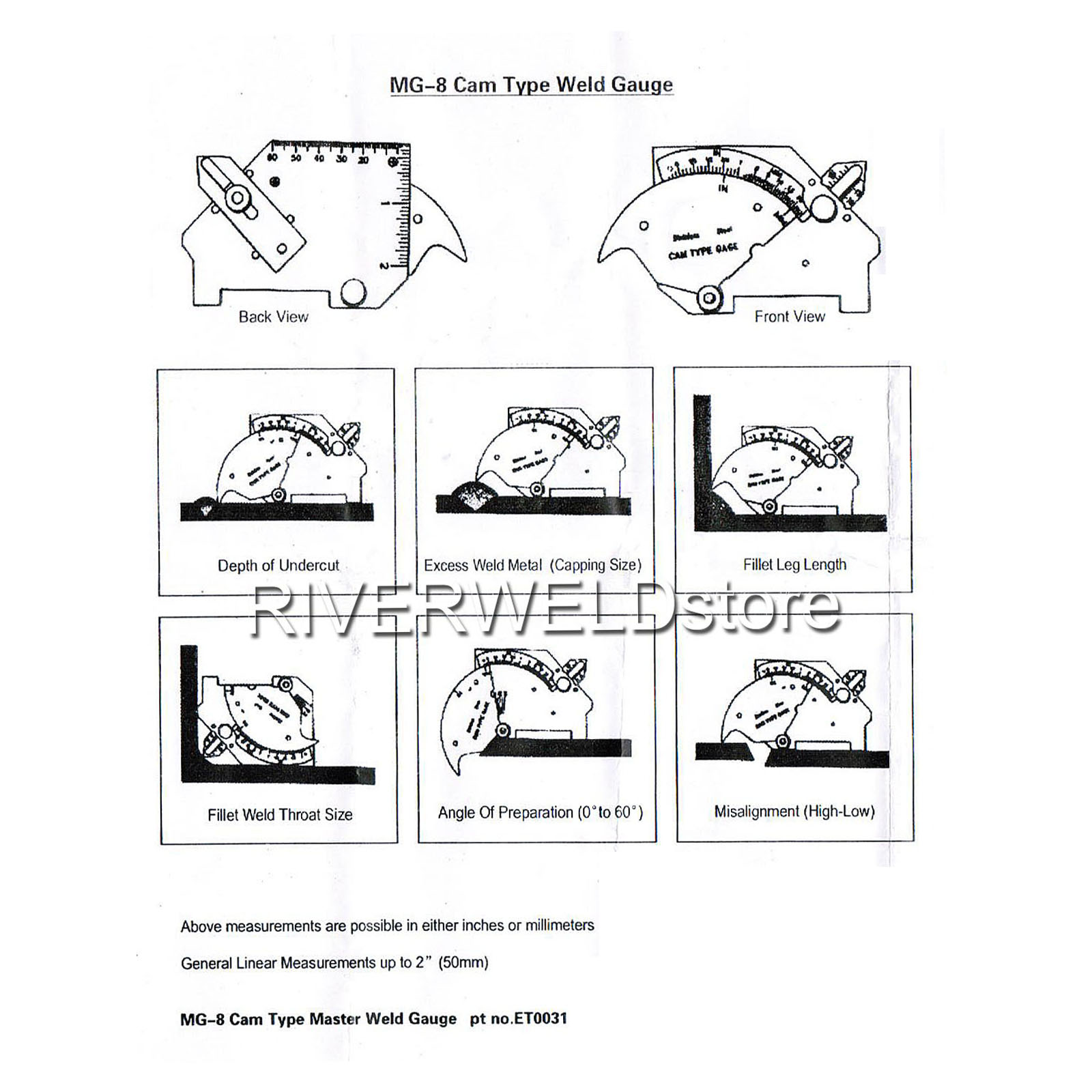

Measurements if possible in either inches or millimeters General Linear Measurements up to 2"(50mm)
Angle of preparation
excess weld metal
Depth of undercut
Depth of ptiiing
fillet weld throat size
fillet weld length
outside misalignment
